Low-Volt PWM LED Dimmer Switch, Brass Panel, 12-24V, 4 Finishes
- Dims LED strips smoothly from 0 to 100%
- Built for 12 to 24 volt systems
- Compact enough for RVs, boats, and cabinets

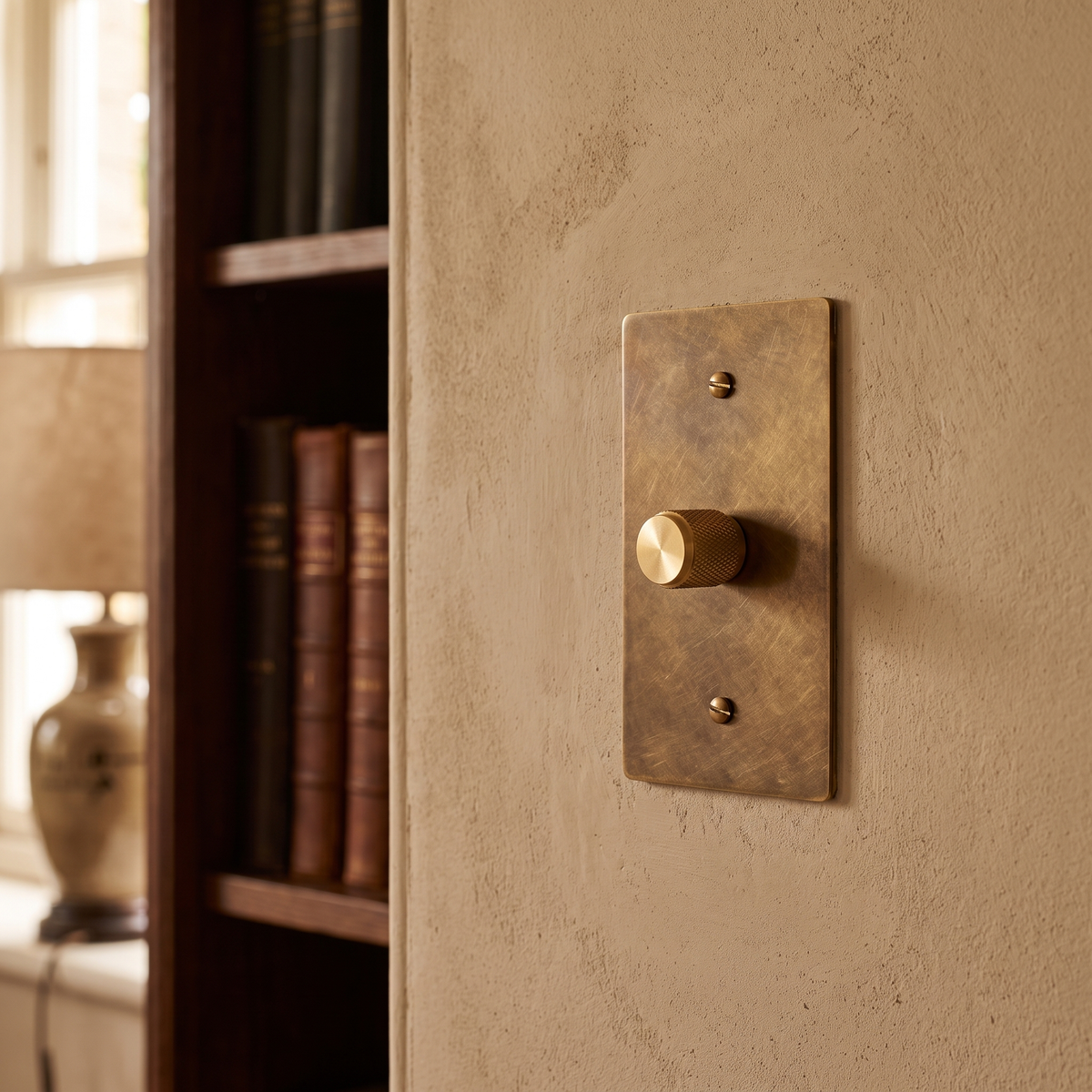

The Day Birch low-volt PWM LED dimmer switch puts smooth 0-100% rotary dimming control on a handmade brass panel in four finishes: Gold, Retro, Black-G, and White-G, all on a 72 x 120mm panel with 6#-32 1/2 brass screws included. Running on 12-24V DC and rated at 4A and 96W max, the HAK-1224V is built for LED strips, 12/24V LED lights, 12/24V halogen lamps, and low voltage under cabinet lighting across RVs, boats, trucks, caravans, and camping trailers. The knurled rotary knob measures 0.9 x 1.3 x 1.3 inch including knob height and can be surface mounted or recessed, with a compact footprint that fits custom and OEM control panels as well as existing on/off positions.
The Day Birch dimmer operates noise-free and flicker-free throughout the full dimming range, with an ambient temperature rating of 0 to +50 degrees C and a 13 inch wire length for flexible installation. Wiring runs on three wires: black for 12-24V voltage input negative, white for 12-24V voltage output negative, and red for 12-24V voltage input positive, with Vin+ and LED+ connected together. The dimmer cannot be used for the control of fans or motors, and the brass panel is handmade so color differences between production batches are a normal result of the process and are not quality defects.
| Panel Size | 2.8" x 4.7" (72 x 120 mm) |
| Body Size | 0.9" x 1.3" x 1.3" (2.3 x 3.3 x 3.3 cm), includes knob height |
| Wire Length | 13" (33 cm) |
| Screws | 6#-32 1/2 brass screws included |
| Color | |
| Variants | Gold / Retro / Black-G / White-G |
| Electrical | |
| Input Voltage | 12-24V DC |
| LED | 12-24V, 4A, 96W max |
| EU LVD Voltage | Low voltage, below 50Vac or 75Vdc |
| Materials | |
| Material | Copper |
| Dimmer Details | |
| Model Number | HAK-1224V |
| Dimmable Way | Rotary knob, knurled design |
| Dimming Range | 0-100% smooth dimming |
| Operation | No noise or flicker during dimming |
| Item Type | Switches |
| Is Smart Device | No |
| Installation | |
| Installation | Surface mounted or recessed |
| Ambient Temperature | 0 to 50 degrees C |
| Wiring | |
| Black wire | 12-24V voltage input negative |
| White wire | 12-24V voltage output negative |
| Red wire | 12-24V voltage input positive (Vin+); Vin+ and LED+ connected together |
| Certifications | |
| High-concerned Chemical | None |
| Notes | |
| Cannot be used for control of fans and motors | |
| Handmade panel; color differences between batches are normal and not a quality defect | |
| Customized products do not accept return or exchange | |
| Different batches of customized lettering size will be different | |
